TSAF
 Post subject: Re: Athens GREECE
PostPosted: Wed May 30, 2012 3:29 pm
Offline

Joined: Sun May 27, 2012 2:39 am
Posts: 63
Location: ATHENS - GREECE
gostros wrote:
TSAF wrote:
kostya.lyt wrote:
Welcome! How did you find us?


I saw one of your cars in Ultra VW magazine. Brians 55 outlaw oval


Check out his thread: viewtopic.php?f=8&t=4435

If you get a chance, I'd love to see more of your car, looks great with those brakes and wheels.


I will post some tomorrow from my office pc. The thread is awesome.

_________________
WRC is for boys
GROUP B WAS FOR MEN

http://www.rallybugs.com/CSBeetle.shtml

Top
 Profile

ConcreteAce
 Post subject: Re: Athens GREECE
PostPosted: Wed May 30, 2012 3:33 pm
Offline
dLk Redneck
User avatar

Joined: Tue Jan 22, 2008 5:58 pm
Posts: 10199
Location: Spring
Welcome! and I cant wait to see more progress pictures. I love German Look fat chicks!

_________________
Ethan Dunlap
Spring, Texas

Top
 Profile

mk-Zero
 Post subject: Re: Athens GREECE
PostPosted: Wed May 30, 2012 5:16 pm
Offline
Der Luft Doktor
User avatar

Joined: Tue Jan 22, 2008 3:31 pm
Posts: 7220
Location: OC CA
Cool car, and welcome! Glad you found us 8-)

_________________
-Brian
IG: @mkzero55vw
'55 Outlaw Oval- 231 hp daily driver :shock:
'56 Oval Vert- Okrasa 36 hp
'52 Standard Split Window
1953 Fleetwood Travel Trailer
2010 FJ Cruiser- The Mountain Goat
30 Ford Model A Pickup Hotrod
Conklin Performance & Engineering

Top
 Profile

OLEYELLER
 Post subject: Re: Athens GREECE
PostPosted: Wed May 30, 2012 7:28 pm
Offline
User avatar

Joined: Tue Apr 15, 2008 7:12 pm
Posts: 2109
Location: Tomball, Texas
Cross the pond, F*cking nut case, :thumbs: glad you found us :thumbs: Post those pics :beer:
"Add weener say"...or something like that! :help:

_________________
73' TYPE 181

Top
 Profile

TSAF
 Post subject: Re: Athens GREECE
PostPosted: Thu May 31, 2012 1:23 am
Offline

Joined: Sun May 27, 2012 2:39 am
Posts: 63
Location: ATHENS - GREECE

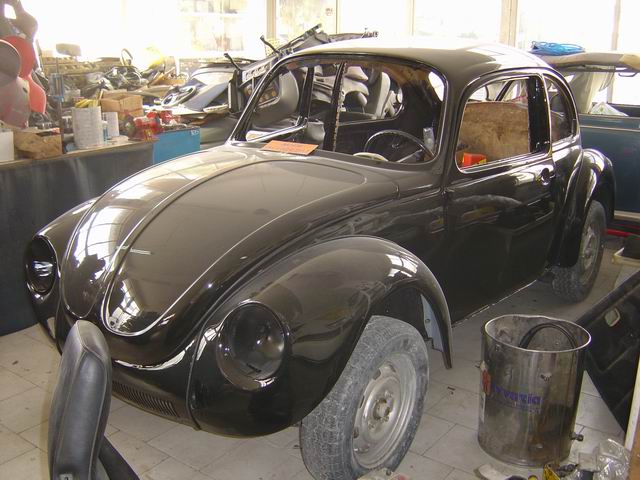

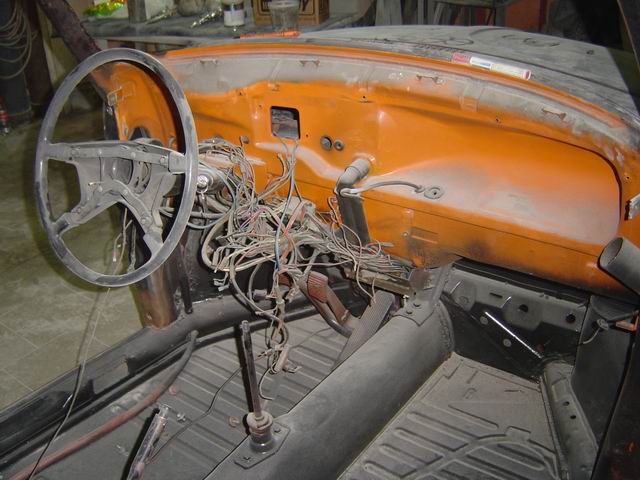

As promised last night. The car started as a normal aspirated 1303s. I used the car for 2 years and then back in 2006 the transformation started.


Attachments:
18.jpg [ 48.27 KiB | Viewed 3845 times ]
16.jpg [ 52.86 KiB | Viewed 3838 times ]
68.jpg [ 59.04 KiB | Viewed 3838 times ]

_________________
WRC is for boys
GROUP B WAS FOR MEN

http://www.rallybugs.com/CSBeetle.shtml
Top
 Profile

TSAF
 Post subject: Re: Athens GREECE
PostPosted: Thu May 31, 2012 1:28 am
Offline

Joined: Sun May 27, 2012 2:39 am
Posts: 63
Location: ATHENS - GREECE

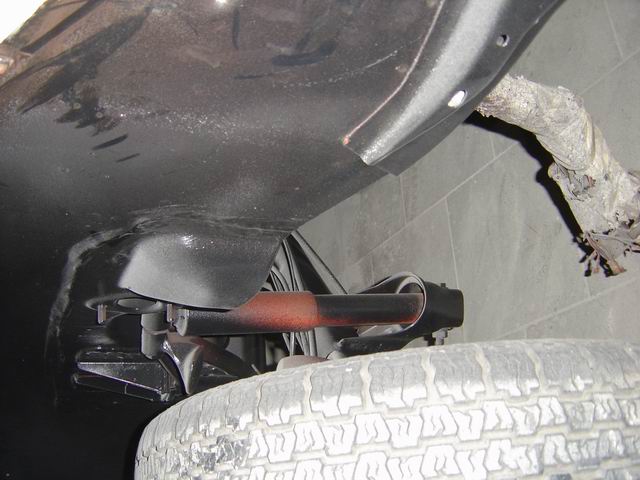

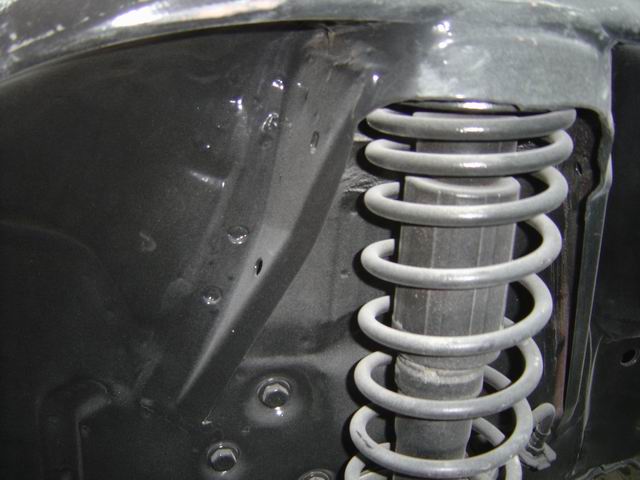

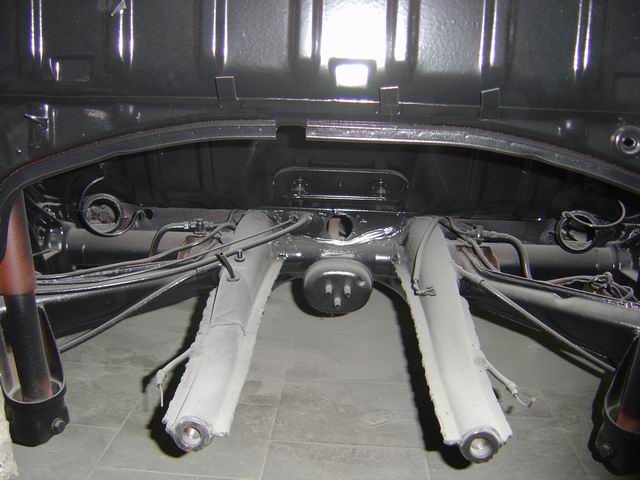

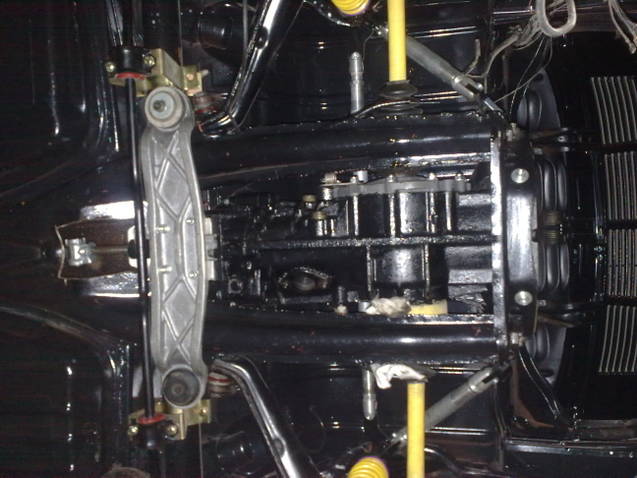

The car went for sandblasting and then the chassis was painted (4 coats by paint spray machine) with special epoxy paint that we use in the shipping industry. More specifically this kind of paint is being used in the TOP SIDE TANKS. Those are the tanks the vessels place all their ballast.


Attachments:
23.jpg [ 55.22 KiB | Viewed 3834 times ]
22.jpg [ 56.88 KiB | Viewed 3837 times ]
19.jpg [ 65.81 KiB | Viewed 3834 times ]

_________________
WRC is for boys
GROUP B WAS FOR MEN

http://www.rallybugs.com/CSBeetle.shtml
Top
 Profile

TSAF
 Post subject: Re: Athens GREECE
PostPosted: Thu May 31, 2012 1:36 am
Offline

Joined: Sun May 27, 2012 2:39 am
Posts: 63
Location: ATHENS - GREECE

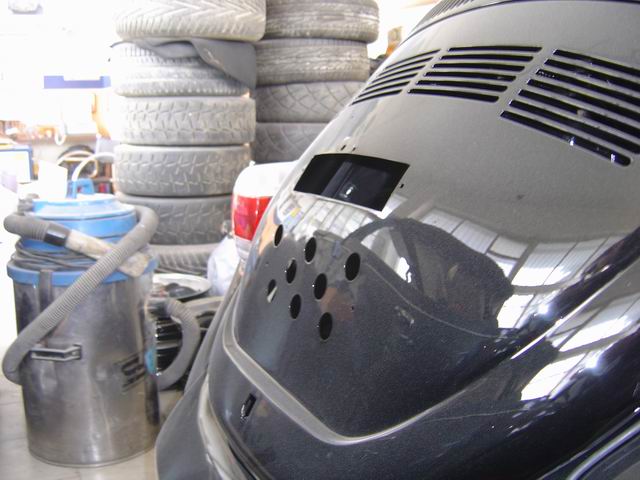

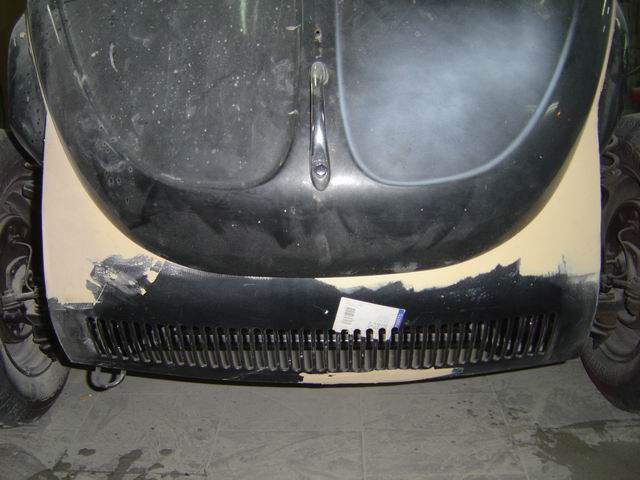

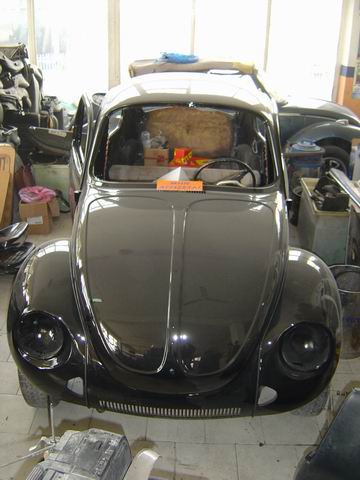

The plan was (big cc type 4 engine, big porsche brakes, big porsche alloys, coilover suspension and much much more).

Body Exterior
New wings (not modified or bigger) - http://www.feinecabrio.de/
New running boards painted - http://www.feinecabrio.de/
New front & rear Bumper painted - http://www.feinecabrio.de/
Front Headlight rims painted - http://cs-beetle.com/
New HELLA Lights front & rear & white turn signals - http://www.csp-shop.de/


Attachments:
36.jpg [ 65.79 KiB | Viewed 3820 times ]
34.jpg [ 57.62 KiB | Viewed 3826 times ]
33.jpg [ 36.59 KiB | Viewed 3818 times ]

_________________
WRC is for boys
GROUP B WAS FOR MEN

http://www.rallybugs.com/CSBeetle.shtml

Last edited by TSAF on Thu May 31, 2012 2:26 am, edited 1 time in total.
Top
 Profile

gostros
 Post subject: Re: Athens GREECE
PostPosted: Thu May 31, 2012 1:37 am
Offline
User avatar

Joined: Tue Jan 22, 2008 8:54 pm
Posts: 4348
Location: Houston
very cool!

_________________
oval1 wrote:
Damn, I wish I lived in Houston.... :cry: :cry:

Top
 Profile

TSAF
 Post subject: Re: Athens GREECE
PostPosted: Thu May 31, 2012 1:42 am
Offline

Joined: Sun May 27, 2012 2:39 am
Posts: 63
Location: ATHENS - GREECE

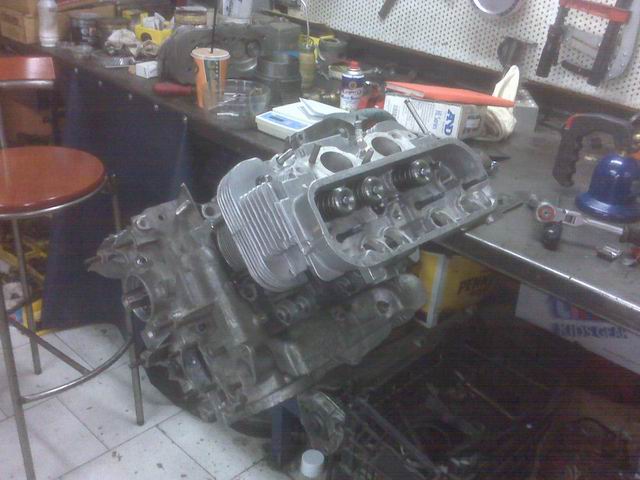

I bought all the needed parts from various sources mainly from Germany (its the mother of type 4 engines), UK and the States.
More specifically

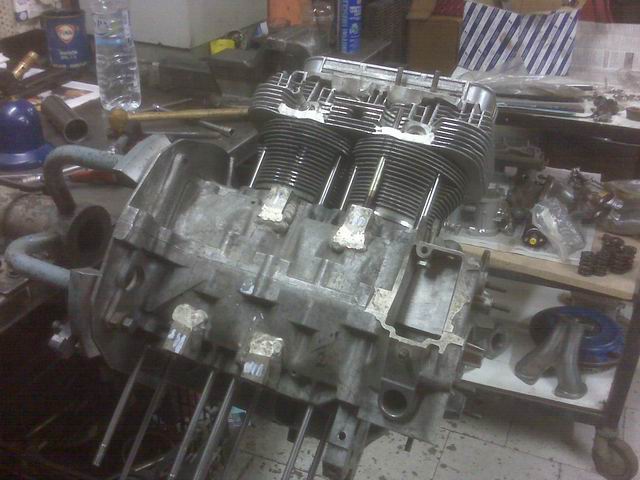

Type IV highly modified crankcase (PORSCHE 914/4-injection) bored to 103mm with ARP 2000 stud kit - http://www.statesidetuning.co.uk/
SCAT billet chromoly crank 80mm with Chevy rod journal - http://www.scatvw.com/.
PAUTER con rods with 3/8 ARP bolts set - http://www.pauter.com/.
JE 103mm piston set + Total seal rings - http://www.laperformance.co.uk/blog/.
New 103mm iron cylinders - http://www.udobeckertuning.de/.

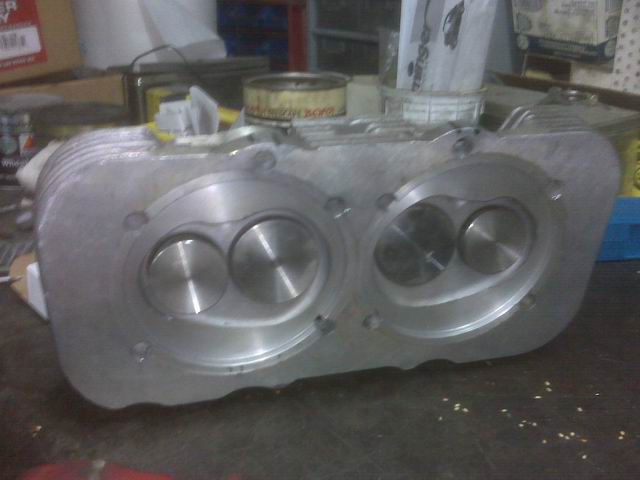

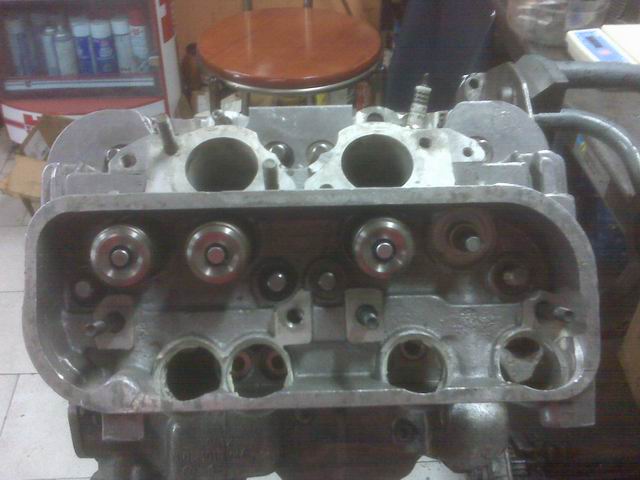

Highly modified Type IV cylinder heads inlet valves 50mm, exhaust valves 42 mm, compression ratio set @ 11.9:1 - http://www.udobeckertuning.de/.
PAUTER titanium retainers - http://www.pauter.com/.
PAUTER titanium lifters 39 gms with bushes - http://www.pauter.com/.
PORSCHE 11 blade fan from 911-930 turbo + Carbon Fiber effect engine shroud - http://cs-beetle.com/
PAUTER custom special camshaft? (my big secret!!!!) - http://www.pauter.com/.

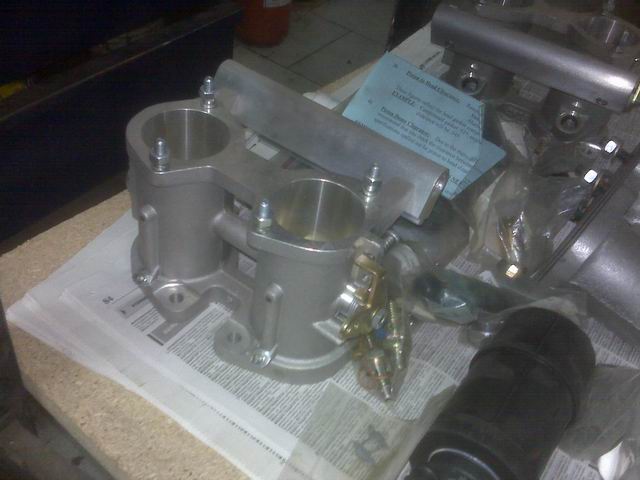

Weber ALPHA 52mm throttle bodies - http://www.statesidetuning.co.uk
HALTECH ECU - http://www.extreme-tuners.com/
Dry Sump - http://www.statesidetuning.co.uk
Front mounted oil cooler - http://cs-beetle.com/
PORSCHE 901 dogleg 5 speed - http://cs-beetle.com/
Conversion parts in order to fit the 901 gearbox to the beetle - http://www.bugat5speed.de/
QUAIFE LSD - http://www.quaife.co.uk/
PORSCHE 930 shafts - http://cs-beetle.com/
PORSCHE 901/914 215mm flywheel & 230lbs Kennedy clutch cover - http://cs-beetle.com/
PORSCHE 911 single pipe rear muffler with high performance header 4-2-1 all stainless steel - http://cs-beetle.com/


Attachments:
56.jpg [ 32.07 KiB | Viewed 3818 times ]
55.jpg [ 40.53 KiB | Viewed 3814 times ]
54.jpg [ 48.15 KiB | Viewed 3815 times ]

_________________
WRC is for boys
GROUP B WAS FOR MEN

http://www.rallybugs.com/CSBeetle.shtml

Last edited by TSAF on Thu May 31, 2012 1:48 am, edited 1 time in total.
Top
 Profile

TSAF
 Post subject: Re: Athens GREECE
PostPosted: Thu May 31, 2012 1:48 am
Offline

Joined: Sun May 27, 2012 2:39 am
Posts: 63
Location: ATHENS - GREECE
a few more


Attachments:
5.jpg [ 46.13 KiB | Viewed 3813 times ]
58.jpg [ 37.47 KiB | Viewed 3809 times ]
57.jpg [ 52.39 KiB | Viewed 3809 times ]

_________________
WRC is for boys
GROUP B WAS FOR MEN

http://www.rallybugs.com/CSBeetle.shtml
