kyle66 · **Posted:** Mon Sep 27, 2010 7:07 pm

Boom wrote:

Deez67VW wrote:

heck bro....i will buy it....can i rent the spare room also...haha

right!!
candi would be sleep walking more than she does already.....

I know that why I enjoy staying with y'all when we go to the classic.

Boom · **Posted:** Mon Sep 27, 2010 7:33 pm

that explains alot!!

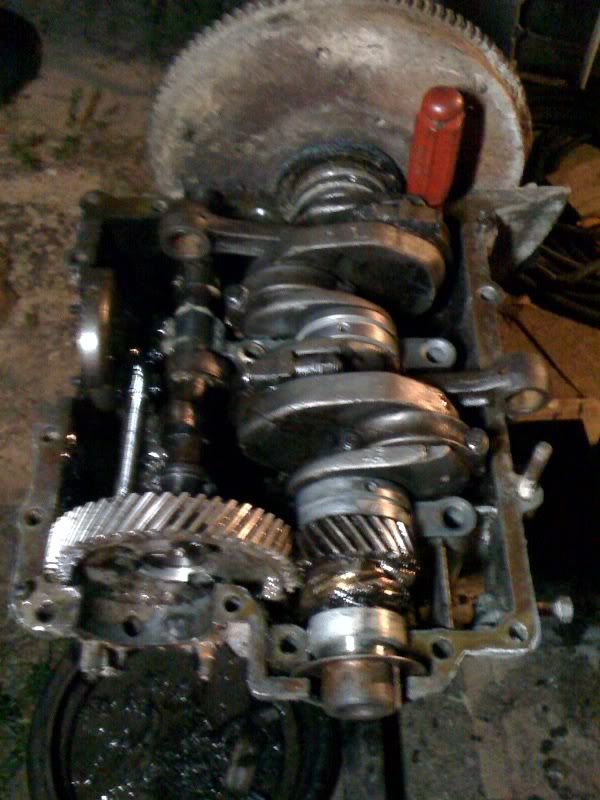

I tore the engine down further today and the bearings are not looking too good.
I didnt see any markings to show it has been cut but the middle bearing shows .025 on the back there is also an elephant on it...weird.....
so I assume the crank has been turned but the case is uncut.
the cam also seems to be in good shape as well as the lifters.
the camshaft has the number 154 stamped into it
also the crank has a weird logo on it, appears to be DEW ?

Boom · **Posted:** Mon Sep 27, 2010 7:46 pm

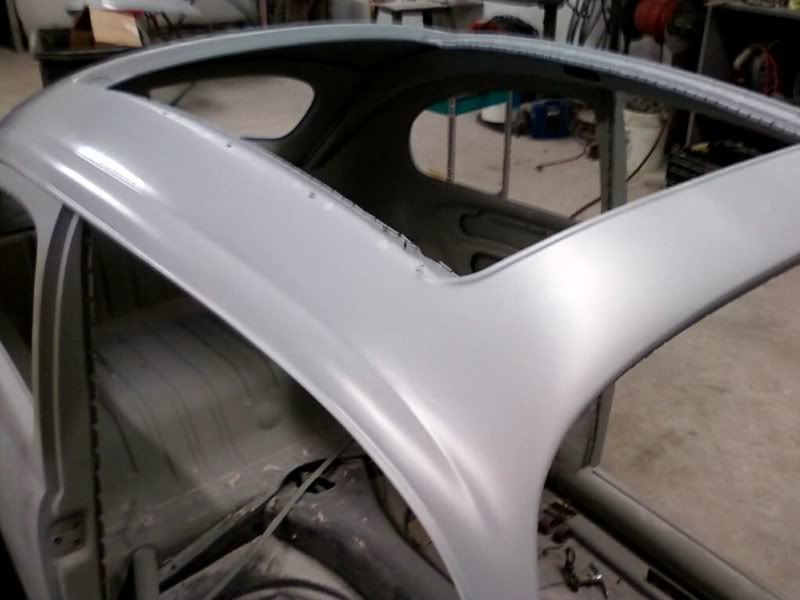

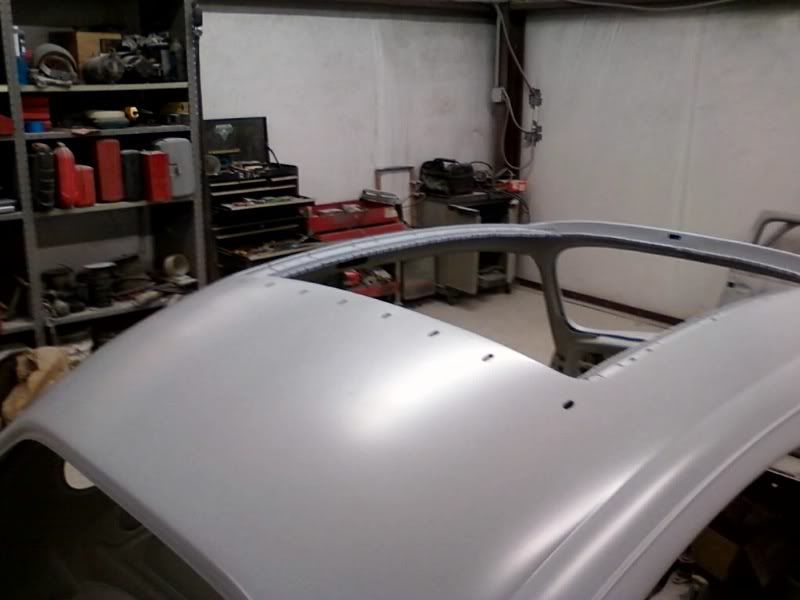

also the ragtop roof is in primer now thanks for the pics Jeremy

oval1 · **Posted:** Mon Sep 27, 2010 8:00 pm

Man, that looks AWESOME :thumbs:

notchback65 · **Posted:** Mon Sep 27, 2010 8:13 pm

Looks Good!!

ConcreteAce · **Posted:** Mon Sep 27, 2010 8:38 pm

DEW is a manufacturer.
If you are trying to find the stroke lay the crank down on a piece of paper on a nice flat surface Take a drafting triangle or speed square or just about anything with a right angle. Butt it up to the outside edge of each rod journal of the crank and make a small pencil mark on the paper. Move the crank out of the way and then draw a straight line between the marks for the left side of the crank and another line for the right side of the crank.

Measure the diameter of the rod journal of the crank with calipers.

Measure the perpendicular distance between the two lines you drew above. This distance will be the stroke of the crank plus the diameter of one rod journal.

Subtract the diameter of the rod journal from the distance between the lines and you have your stroke.

If you do all your measuring in inches, just multiply your final number by 25.4 to convert to millimeters. This number will likely not be a nice round 69, 74, 78, 82 millimeters due to measurement error and round-off, but it should be close enough to one of these to let you know what the crank stroke is.

Boom · **Posted:** Mon Sep 27, 2010 8:45 pm

did you just copy that from the samba?? I just read that earlier I think
but good call on the manufacture I am unsure yet what I am going to do as I think the case may not be savable there is some rot around the rear main area

notchback65 · **Posted:** Mon Sep 27, 2010 8:46 pm

Google is your friend..

Happy Birthday Google :beer:

oval1 · **Posted:** Mon Sep 27, 2010 8:49 pm

notchback65 wrote:

Google is your friend..

Happy Birthday Google :beer:

When he's been Bad Courtney grounds him from Google. It seems to be a good disciplinary tool for her

ConcreteAce · **Posted:** Mon Sep 27, 2010 8:49 pm

Boom wrote:

did you just copy that from the samba?? I just read that earlier I think
but good call on the manufacture I am unsure yet what I am going to do as I think the case may not be savable there is some rot around the rear main area

I am the king of copy and paste

as well as google.
